OPDS-100
Owl Perimeter Defense Solution-100

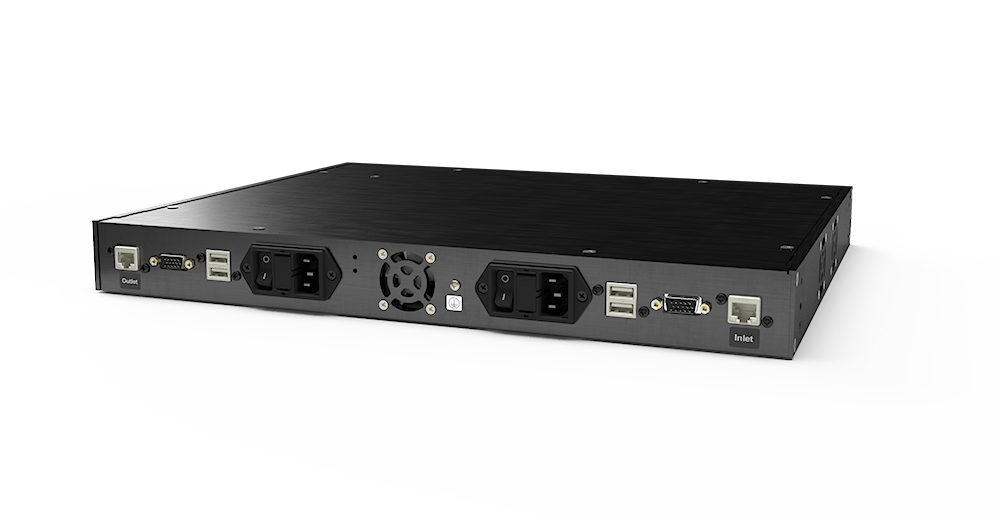

The OPDS-100 is a standard, all in one, 1U rack-mountable data diode cybersecurity platform designed to address applications requiring low to moderate data throughput.

Overview

Data Diode Cybersecurity

The OPDS-100 is a standard, all in one, 1U rack-mountable data diode cybersecurity platform. Offering the same network security capabilities as other Owl Perimeter Defense Solutions, it is designed to address applications requiring low to moderate data throughput. Integrated, EAL certified Owl communication cards form a deterministic one-way link with an absolute protocol break, ensuring the highest level of security available.

Broad Capabilities

As with other Owl Perimeter Defense Solutions, OPDS-100 supports a broad range of capabilities: File transfer via Owl’s Remote File Transfer Service (RFTS), FTP, and SFTP; SMTP email transfer; TCP/IP packet transfer; and UDP datagram transfer. The device supports Owl’s variable bandwidth licensing mechanism, allowing users to upgrade the link rate from a base of 10 Mbps up to 26, 54, or 104 Mbps. As a customer’s bandwidth requirements increase, they can easily upgrade performance by purchasing and installing a new rate key license.

Tech Specs

Technical Specifications

OPERATING CONDITIONS:

32°F to +110°F / 0°C to 43.33°C

20% to 85% humidity non-condensing

POWER SUPPLY:

Input: 100-240V AC auto-ranging, min. 30W per side(fused at 1A at IEC connector)

Output: 5V at 5A – EU & UK power cables on request

STORAGE:

-40°F to 158°F / -40°C to 70°C

5% to 90% humidity non-condensing

VIBRATION:

Vibration: (IEC 60255-21-1)

Vibration 1g(10-500Hz) (Operational)

Vibration 2g(10-500Hz) (Operational and Non-Operational)

MOUNTING SYSTEM:

(1U) Rack Mount, tabletop

NETWORK CONNECTIVITY:

Ethernet connections for network traffic and remote administration

Physical connectors: 8P8C (RJ45)

Supports speeds of: 10 Mbps, 26 Mbps, 52 Mbps, & 104 Mbps

SHOCK:

Shock: (IEC 60255-21-2) / Shock 10g 11ms (Operational)

Shock 30g 11ms (Operational and Non-Operational)

COOLING:

Conductive cooling through enclosure side walls with High Life Expectancy/Low Noise Fans

APPROVALS:

FCC Class B compliance

CE Mark

CB Certificate: 72130592

UL 60950-1:2007 R12.11

CAN/CSA-C22.2 No.60950-1-07+A1:2011

International Common Criteria Certification – EAL Certified

VCCI

ISO:

Manufactured using ISO 9001:2015 certified quality program

CHASSIS SIZE:

16.5” W x 1.75” H x 13” D

41.91 cm x 4.5 cm x 33 cm

UNIT WEIGHT:

7.92 lbs./3.6 kg.

MEAN TIME BETWEEN FAILURE (MTBF):

14+ years

LOCAL ADMINISTRATION:

VGA connector for monitor

USB connectors for keyboard and mouse
