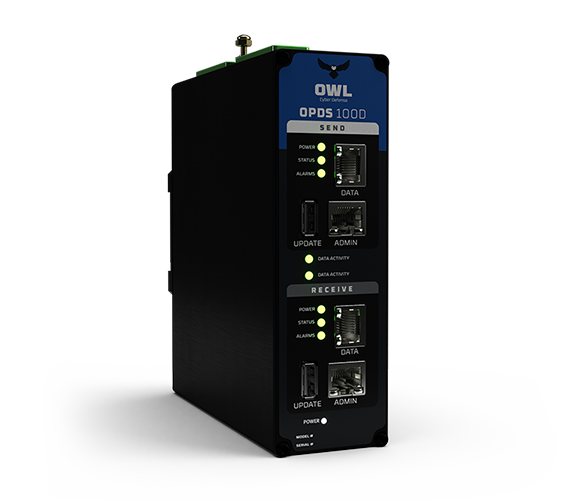

Designed specifically for industrial control deployments, the compact OPDS-100D form factor is DIN rail mountable and ready for deployments in plants and other industrial facilities.
Optimized for Industrial Control
Optimized for demanding industrial control applications, the OPDS-100D is a data diode for cybersecurity that delivers the same deterministic one-way transfer capabilities as other OPDS products. It supports a wide range of data formats and transport layer protocols including: email (SMTP), FTP/SFTP, TCP and UDP (multicast, unicast, broadcast). The OPDS-100D also supports optional Owl software interfaces (connectors) that enable integration to a broad range of applications including Modbus, OPC DA and OPC A&E.
Scalable Performance
The OPDS-100D’s performance is scalable. Customers can select from 5 Mbps, 10 Mbps, 26 Mbps, 52 Mbps, and 104 Mbps transfer rates. And as a customer’s bandwidth requirements increase they can easily upgrade performance by purchasing and installing a new rate key license. Operational in harsh, industrial control environments, the OPDS-100D operates in an extended temperature range (-40°C to +60°C) and exceeds IEC 60255-21 standards for Shock and Vibration. The OPDS-100D, cybersecurity for the convergence of OT and IT networks.
Supported Protocols
Natively supports UDP, TCP/IP, SNMP, SMTP, NTP, and FTP transfers (separately or simultaneously)
Technical Specifications
OPERATING CONDITIONS:
-40°F to +140°F / -40°C to +60°C
5% to 90% humidity non-condensing
POWER SUPPLY:
Input: 9-36V DC
Estimated Normal Operating Usage: 10-15W per side
Max. 20W Per Side
Optional AC Power Brick (not provided)
STORAGE:
-40°F to 158°F / -40°C to 70°C
5% to 90% humidity non-condensing
VIBRATION:
Vibration: (IEC 60255-21-1)
Vibration 1g (10-500Hz) (Operational)
Vibration 2g (10-500Hz) (Operational and Non-Operational)
MOUNTING SYSTEM:
DIN Rail (1″) Mount, tabletop
SHOCK:
Shock: (IEC 60255-21-2)
Shock 10g 11ms (Operational)
Shock 30g 11ms (Operational and Non-Operational)
COOLING SYSTEM:
Conductive cooling through enclosure side walls supplemented by adaptive active cooling based on system temperature control
APPROVALS:
FCC Class A compliance
CE Mark
CB Certificate: Report 31780392.001
EN 60950-1:2006 +A11:2009 A1:2009 A1:2010 + A12:2011 + A2:2013
UL 60950-1:2007 R10.14
CAN/CSA-C22.2 NO.60950-1-07+A1:2011+A2:2014
International Common Criteria Certification – EAL Certified
VCCI
ISO:
Manufactured using ISO9001:2015 certified quality program
CHASSIS SIZE:
1.92” W x 6.132” H x 5.5” D
4.88 cm x 15.58 cm x 13.97 cm
UNIT WEIGHT:
2 lbs, 7 oz /1.1 kg.
MEAN TIME BETWEEN FAILURE (MTBF):
11 years
NETWORK CONNECTIVITY:
Separate Ethernet connections for network traffic and remote administration
Physical connectors: 8P8C (RJ45)
Supports 10BASE-T, 100BASE-TX, 1000BASE-T
