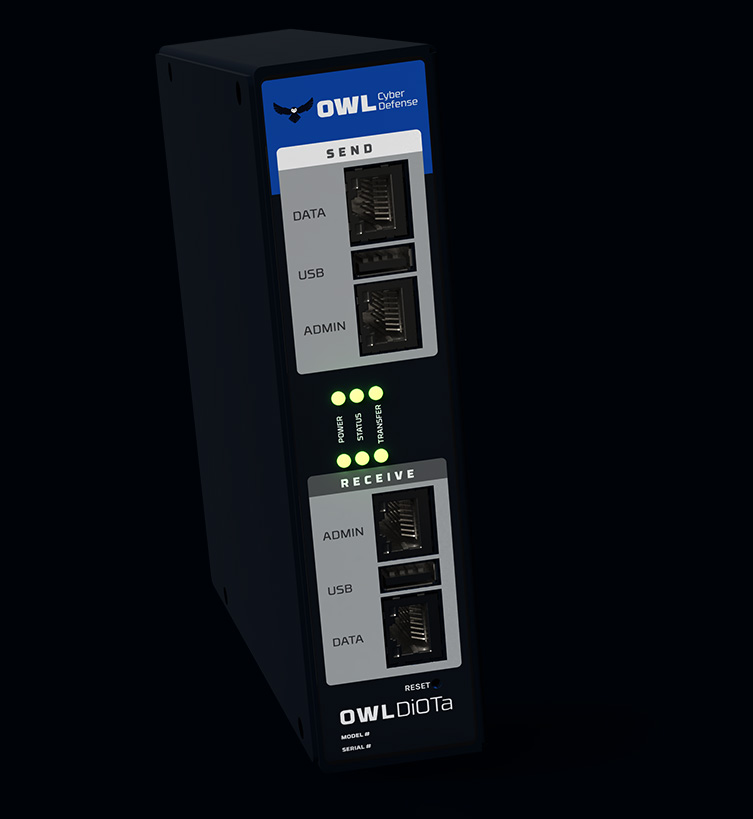

DiOTa
DiOTa is a compact, single-purpose data diode designed to provide secure, one-way data transfers from a source to destination, without exposing the secure network to risk. Designed to be deployed at scale to secure operational technology (OT) networks, micro-segmentation applications, and network boundaries (both on-site and at remote locations), DiOTa requires little to no support and maintenance.
Data Sheet
Brochure
Product Video
Use Case
Webinar

Easy to Configure & Deploy

DiOTa can be setup and deployed in under an hour. No complex configurations or expertise required. Once the device is received, turn it on, plug in the ethernet cables, and simply follow the setup wizard to enter your source and destination IP addresses, the protocol you will be using, as well as the port number. It’s as simple as that.

Diota Pricing

Are you still under the misconception that data diodes are one of the most expensive network security solutions in the marketplace? Compared to industrial firewalls, DiOTa provides a higher level of security and assurance at a comparable cost, requiring much less maintenance and support over its lifetime. Protect industrial devices at scale with hardware-enforced security, at an affordable cost, with a lower TCO.

Enterprise-Wide Deployment
Deploy DiOTa across your enterprise
$5,900PER UNIT
Volume-purchase discounting
Set-it-and-forget-it solution

Get it.

Receive DiOTa, turn on the device, and plug in the ethernet cables.

Set it.

Configure DiOTa by providing your source IP, destination IP, protocol, and port number.

Forget it.

Deploy across your enterprise with little to no maintenance or support necessary.

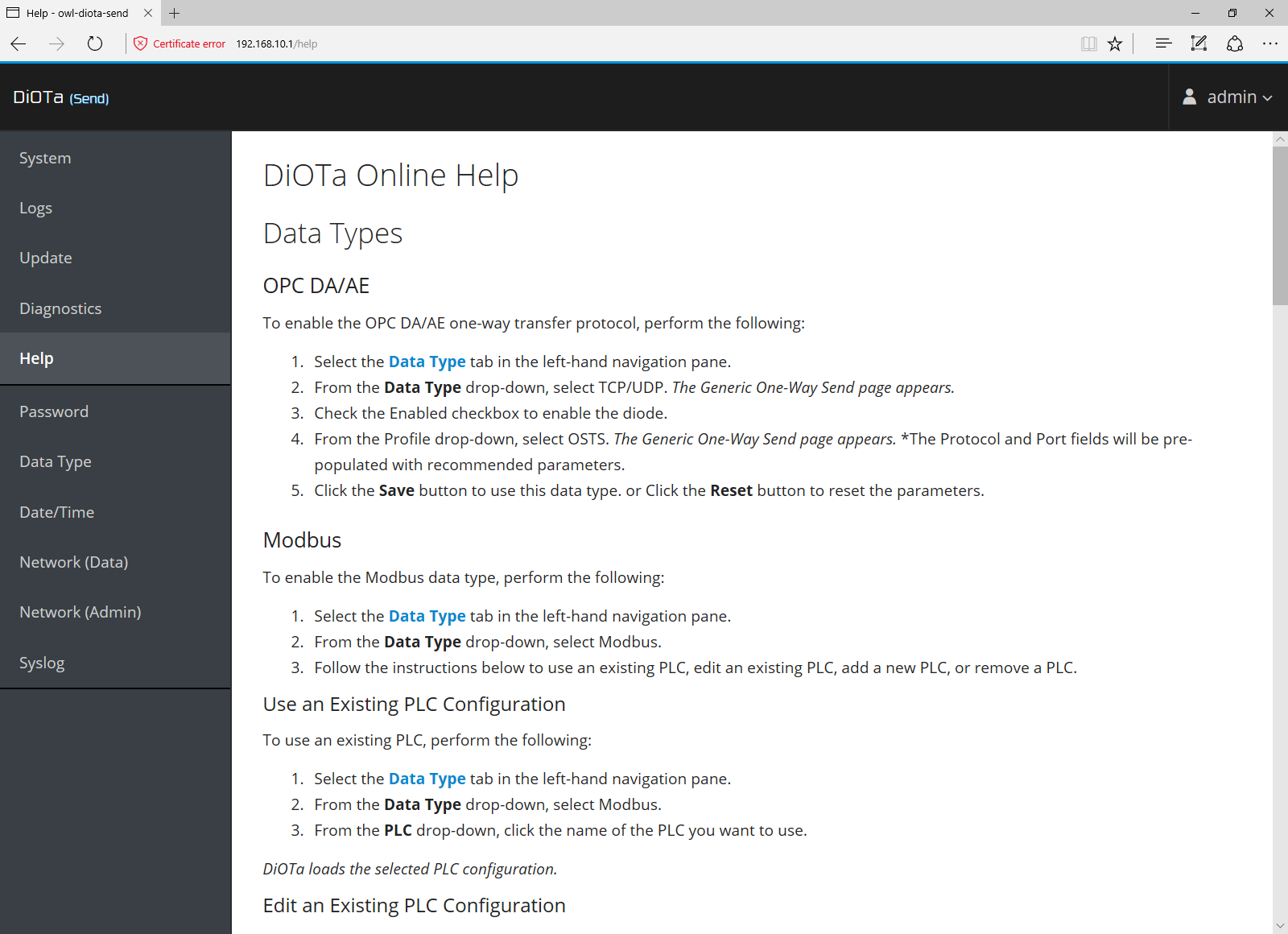

Instructions at Your Fingertips

Used to complex industrial firewall configurations? Relieve yourself of the frustration with DiOTa’s quick start guide, setup wizard, and online help guides, not to mention superior support from the Owl team if needed. DiOTa’s user interface will walk you through your configuration step by step, with additional information in the online help guides to help you quickly and easily achieve your use case. It’s as simple as that.

Set It and Forget It

Sick of maintenance-intensive solutions that require frequent patching and updates and are prone to misconfiguration errors? Deploy DiOTa and forget about it. Have peace of mind knowing that DiOTa is providing high-assurance security compared to software-based solutions. DiOTa is so easy to maintain that you’ll forget it’s even deployed, in the best way possible.

Protocol Support

DiOTa supports a variety of commonly-used industrial protocols and supports a single protocol at a time.

INCLUDED PROTOCOLS

  • TCP, UDP (Unicast/Multicast)
  • SNMP Traps (UDP, TCP)
  • Syslog

ADDITIONAL PROTOCOL ADAPTERS

  • File & Directory Transfer
  • Modbus (2 PLCs, Maximum of 2560 Registers)
  • OPC DA/A&E

Technical Specifications

OPERATING CONDITIONS:

-4° F to +113° F / -20° C to +45° C

5% to 90% humidity non-condensing

POWER SUPPLY:

Estimated normal operating usage: 10W total

12V-DC power brick with barrel connector (included)

Optional: 9-26V-DC power phoenix connector



MOUNTING SYSTEMS:

Tabletop, DIN-rail (optional)

APPROVALS:

FCC Class B compliance
CE mark
CB certificate
IEC/EN 62368-1
CAN/CSA-C22.2 62368-1:2014
VCCI-B
TUV
Based on EAL-certified technology

ISO:

Manufactured using ISO 9001: 2015 certified quality program

UNIT WEIGHT:

1 lb / 0.45 kg

NETWORK CONNECTIVITY:

Separate ethernet connections for network data and administrative functions

Physical connectors: 8P8C (RJ45)

Supports 10BASE-T, 100BASE-TX



MAX THROUGHPUT:

5 Mbps

Learn More About DiOTa

Fill out this form and a member of our team will be in touch!

Interested in a Multi-Purpose Data Diode?

DiOTa is Owl’s single-purpose data diode. If you are interested in a multi-purpose data diode that can support multiple data streams and protocols at a time, check out the OPDS-100D, designed for harsh industrial environments, or the OPDS-1000, designed for more demanding industrial control applications.
