TCDS-MPP-010
Tactical Cross Domain Solution - Multi-Protocol Platform

The TCDS-MPP-010 is Owl’s mobile/tactical hardware-enforced one-way transfer solution for streaming and/or file transfer.

Overview

Raise-the-Bar Ready

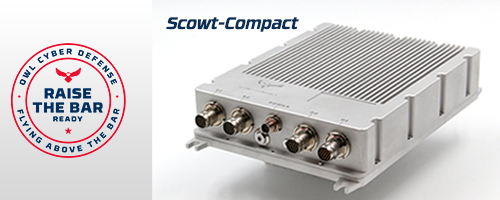

It combines Owl Scowt’s Raise-the-Bar (RTB)-ready ruggedized hardware platform and Owl’s Multi-Protocol Platform (MPP) Cross Domain Solution (CDS) software platform.  Owl’s CDS-MPP software is designed to address RTB’s One-Way Transfer (OWT) design patterns. The Owl Scowt-Compact hardware platform is conduction cooled and frame or shelf mounted. This configuration is reduced size, weight, and power (SWaP) dual-processing nodes, separated by Owl’s patented hardware-enforced one-way transfer diode, that support dataflow bandwidth up to 104 Mbps for UDP and TCP content streaming and file transfers.



Key Features

The Owl-Scowt Compact is a dual-node platform that includes two processing environments separated by Owl’s patented hardware-enforced, one-way transfer diode. Each processing environment includes an instance of Owl’s CDS-MPP software that is based on a STIG compliant, CLIP enforced EAL4+ Red Hat Enterprise Linux (RHEL) foundation. It’s capable of scanning and file validation filtering for file transfer data flows and filter protocol header and payload for streaming dataflows.

The total solution’s combined technologies provide data flow protection for the highest threat environment connections.

  • Latency -3ms to 8ms depending on the filter
  • UDP-based data streaming and TCP-based file transfers or data streams
  • Up to four data flow types: filtered files, non-filtered TCP streams, Filtered UDP unicast and multicast streams, UDP broadcast
  • RFTS and TCP/UDP Sockets
What's Included

What’s Included:

  • Ruggedized hardware enclosure
  • Self-Encrypting Drive (SED) for Full Disk Encryption
  • 1 Owl 010 patented diode card
  • MPP software
  • Optional:
    SCOWT-CONNECTOR-KIT: Complete set of mating Glenair connectors
    SCOWT-LAB-KIT:  Two Ethernet cable assemblies with mating Glenair connector end for lab setup and configuration.



Tech Specs

Technical Specifications

CHASSIS SIZE & WEIGHT

6.0″W x 1.66″H x 8.40″L

15.24cm x 4.22cm x 21.33cm

3 lbs, 1 oz /1.4 kg



POWER SUPPLY

Input: 9-36V DC

Max. 40W

SYSTEM FEATURES

TPM v2.0

MOUNTING

Cold plate mount



COOLING SYSTEM

Cold plate must maintain 40°C or below



OWL CARD

Owl 010 card set

CONNECTORS

Mission critical MIL DTL connections



LOCAL ADMINISTRATION

VGA, 2 USB



SECURITY

Hardware-enforced data diode



NETWORK CONNECTIVITY

Separate Ethernet connections for network traffic and independent configurations

Supports 10BASE-T, 100BASE-TX, 1000BASE-T



OPERATING CONDITIONS

*Exact temperature to be determined

5% to 90% humidity non-condensing

Cold plate must maintain 50 degrees Celsius or below



VIBRATION

Vibration: (IEC 60255-21-1)

Vibration 2g (10-500Hz) (operational and non-operational)



SHOCK
Shock: (IEC 60255-21-2)
Shock 10g 11ms (operational)
Shock 30g 11ms (operational and non-operational)

COMPLIANCE

  • FCC Class A compliance (Expected Q2 2020)
  • CE Mark CB certificate: report 31780392.001 EN 60950-1:2006 +A11:2009 A1:2009 A1:2010 +
  • A12:2011 + A2:2013 UL 60950-1:2007 R10.14 CAN/CSA-C22.2 NO.60950-1-07+A1:2011+A2:2014
  • (Expected Q2 2020)
  • International Common Criteria certification – EAL certified
  • MIL STD R75, 704, 461, 810 (Expected Q2 2020)
  • ISO
  • Manufactured using ISO9001:2015 certified quality program
